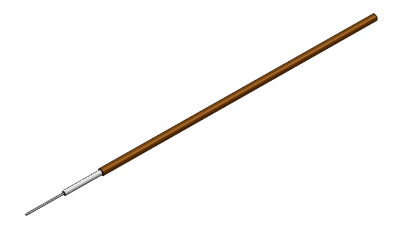

Center Conductor Diameter

0.0050 in

Dielectric Diameter

0.0150 in

Outer Conductor Diameter

0.0230 in

MATERIALS

Center Conductor Material

SPCW

Dielectric Material

PTFE

Outer Conductor Material

Copper

RoHS Compliant

Yes

MECHANICAL CHARACTERISTICS

Minimum Temperature

?55 °C

Maximum Temperature

+125 °C

Inside Bend Radius (Minimum)

0.050 in

Weight

0.10 lbs per 100 ft

ELECTRICAL CHARACTERISTICS

Nominal Impedance

50.0 ?

Nominal Impedance Margin

±2.0 ?

Velocity of Propagation

69.50%

Shielding Effectiveness

>165 db

Voltage Withstanding

750 VRMS@ 60 Hz

Continuous Working Voltage

300 VRMS max

Maximum Operating Frequency

260 GHz

Attenuation

FREQUENCY

DB / 100 FT TYPICAL

0.5 GHz

53 db

1.0 GHz

75 db

5.0 GHz

170 db

10.0 GHz

244 db

18.0 GHz

332 db

26.5 GHz

409 db

40.0 GHz

511 db

50.0 GHz

577 db

65.0 GHz

668 db

90.0 GHz

803 db

Power

FREQUENCY

WATTS CW @ 20 °C (MAX)

0.5 GHz

17 W

1.0 GHz

12 W

5.0 GHz

5.5 W

10.0 GHz

3.8 W

18.0 GHz

2.8 W

26.5 GHz

2.3 W

40.0 GHz

1.8 W

50.0 GHz

1.6 W

65.0 GHz

1.4 W

90.0 GHz

1.2 W
