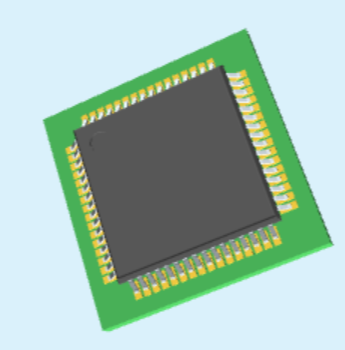

RA2E1微控制器Renesas

发布时间：2023-05-06 17:08:28     浏览：1985

Renesas RA2E1是RA系列基础级单芯片微控制器，根据48MHzArm? Cortex?-M23核心，具备高至128kB代码闪存芯片及其16kB的SRAM。RA2E1微控制器选用优化的制造和Renesas 电子的低耗能生产工艺，是行业内顶级能力的超低功耗微控制器。RA2E1微控制器兼容1.6V至5.5V的宽工作电压范围和各种封装，如LQFP、QFN、LGA、BGA和WLCSP。RA2E1能与RA2E1微控制器管脚和外部设备兼容，特别适合于电源供电技术应用及其空间受到限制技术应用，以及其它需要高性能和低耗能系统。

特性

48MHzArm? Cortex?-M23

高至128kB的闪存芯片及其16kBSRAM

4kB数据闪存芯片，提供EEPROM相似的数据存储功能

从25管脚封装拓展至64管脚封装

1.6V-5.5V的宽工作电压范围

高性能电容式触控感应模块(CTSU)

12位ADC，LPACMP，温度传感器

32位通用型PWM定时器，16位通用型PWM定时器，低耗能异步通用型定时器

实时时钟

SCI（UART、简易SPI、简易I2C）

单独的SPI端口/I2C多主端口

安全配置

数据加密功能

多种封装选择（LQFP、QFN、LGA、BGA及WLCSP）

Renesas电子初始成立于日本，Renesas主要以MPU、接口电路、电源管理、光电子以及航天应用产品为特色。Renesas提供专业可靠和创新的嵌入式设计和完整的半导体解决方案，旨在通过使用其产品的数十亿连接智能设备来改善人们的工作和生活方式。Renesas是微控制器的领先供应商，也是世界上模拟电源设备和SoC产品的领先供应商。Renesas电子公司为汽车、工业、基础设施和物联网应用提供全面的解决方案。

深圳市利来国国际网站创展科技有限公司，优势代理分销Renesas产品线，部分系列常备现货。

详情了解Renesas请点击：http : /public/brand/59.html




Product ID

Program Memory (KB)

Data Flash (KB)

RAM (KB)

Lead Count (#)

Supply Voltage (V)

Operating Freq (Max) (MHz)

I/O Ports

ADC

Low-Power Analog Comparator (ch) (#)

Bit Size

Temp. Range

R7FA2E1A93CFK#AA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CFL#AA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CFM#AA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A52DBV#HC0

32

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 85°C

R7FA2E1A93CNE#AA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A53CFL#AA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A53CNE#AA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A53CFJ#AA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A53CNH#AA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A53CLM#AC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A53CBV#HC0

32

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 105°C

R7FA2E1A92DFM#AA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A52DLM#AC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A92DFK#AA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DFL#AA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DNE#AA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DFJ#AA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A92DNH#AA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A92DBU#AC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CFJ#AA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A92DLM#AC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A93CNH#AA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A92DBV#HC0

128

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 85°C

R7FA2E1A93CBU#AC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A52DNH#AA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A93CLM#AC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A93CBV#HC0

128

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 105°C

R7FA2E1A73CFM#AA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFK#AA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFL#AA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CNE#AA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFJ#AA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A52DFJ#AA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A73CNH#AA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A52DNE#AA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CBU#AC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CLM#AC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A73CBV#HC0

64

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 105°C

R7FA2E1A52DFL#AA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DBV#HC0

64

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 85°C

R7FA2E1A72DLM#AC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A72DBU#AC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DNH#AA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A72DFJ#AA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A72DNE#AA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFL#AA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFK#AA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFM#AA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A52DFJ#BA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A52DFJ#HA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A53CFJ#BA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A53CFJ#HA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A72DFJ#BA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A72DFJ#HA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A73CFJ#BA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A73CFJ#HA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A92DFJ#BA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A92DFJ#HA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A93CFJ#BA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A93CFJ#HA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A52DFL#BA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A52DFL#HA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A53CFL#BA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A53CFL#HA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A72DFL#BA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFL#HA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CFL#BA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFL#HA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A92DFL#BA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DFL#HA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CFL#BA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CFL#HA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A72DFM#BA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFM#HA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CFM#BA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFM#HA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A92DFM#BA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DFM#HA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CFM#BA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CFM#HA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A72DFK#BA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFK#HA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CFK#BA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFK#HA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A92DFK#BA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DFK#HA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CFK#BA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CFK#HA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A52DLM#BC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A52DLM#HC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A53CLM#BC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A53CLM#HC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A72DLM#BC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A72DLM#HC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A73CLM#BC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A73CLM#HC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A92DLM#BC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A92DLM#HC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A93CLM#BC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A93CLM#HC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A72DBU#BC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DBU#HC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CBU#BC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CBU#HC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A92DBU#BC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DBU#HC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CBU#BC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CBU#HC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A52DNH#BA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A52DNH#HA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A53CNH#BA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A53CNH#HA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A72DNH#BA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A72DNH#HA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A73CNH#BA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A73CNH#HA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A92DNH#BA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A92DNH#HA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A93CNH#BA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A93CNH#HA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A52DNE#BA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A52DNE#HA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A53CNE#BA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A53CNE#HA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A72DNE#BA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DNE#HA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CNE#BA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CNE#HA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A92DNE#BA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DNE#HA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CNE#BA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CNE#HA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C


上一篇: RO4835?层压板Rogers

下一篇: Super ITS? - IFO B 光纤连接器Glenair

推荐资讯

  • MTI-Milliren 240系列OCXO：通信与网络同步的高精度频率解决方案
    MTI-Milliren 240系列OCXO：通信与网络同步的高精度频率解决方案 2024-12-09 08:52:59

    MTI-Milliren的240系列OCXO（恒温晶体振荡器）广泛应用于通信系统、无线基础设施、测试和测量设备以及网络同步。其频率范围为75kHz至30MHz，热稳定性为2.0E-08至5.0E-07，工作温度范围为-40至+85°C，年老化率为2.0E-08至5.0E-07。该系列产品支持5V至15V的供电电压，供电电压敏感度为5.0E-09至5.0E-08，提供正弦波（0至+11dBm）或CMOS输出，谐波低至-30dBc。预热时间为5分钟，预热功耗为4.5W至7.0W，连续功耗为1.2W至2.0W，调谐范围为±5.0E-07至±4.0E-06，调谐电压为0至+10V。

  • Wi2Wi(PDI)TCXO、VCXO、OCXO晶振-精密频率控制专家
    Wi2Wi(PDI)TCXO、VCXO、OCXO晶振-精密频率控制专家 2025-08-19 09:13:10

    Wi2Wi公司收购PDI后成为专业定时/频率控制设备供应商，面向军工、航天及工业市场，提供晶体、振荡器（TCXO/VCXO/OCXO）、滤波器等全系列产品。其ISO 9001认证工厂生产符合MIL标准的核心器件，具备-55℃~125℃宽温工作能力，支持THT/SMD封装及快速定制（最快2天交付），并通过内部实验室严苛可靠性验证，频率覆盖10MHz-1450MHz。

在线留言

在线留言
