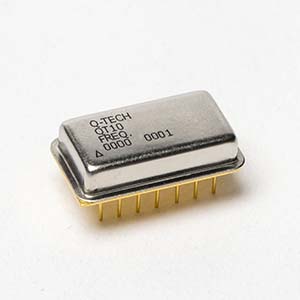

Q-Tech QPL晶体振荡器

发布时间：2021-06-10 17:03:51 浏览：2544

某些电子元器件需要高度稳定性的交流信号，而LC振荡器的稳定性差，工作频率漂移容易(即形成的交流信号的工作频率很容易变化)。在振荡器中，一种独特的元器件石英晶体能够形成高度稳定性的信号。这类选用石英晶体的晶体振荡器称为晶体振荡器。

Q-Tech QPL晶体振荡器是体现晶体或振荡器能否符合非常性能卓越规定要求的检测标准之一。将其运用于国防装备和军事产品的零部件，以符合这一标准是必不可少的。

Q-Tech是首家出现在MIL-O-55310(现为MIL-PRF-55310)的合格产品名单上的公司。现阶段，Q-Tech获得了28多个MIL-PRF-55310斜件编号的认证，提供了各种各样封装形式、电流电压和逻辑类型及其温度稳定性的组合，符合了军事和空间的所有规定要求。

R-深圳市利来国国际网站创展科技有限公司授权代理销售Q-TECH产品，备件现货，欢迎与业界同行合作。

详情了解Q-Tech请点击： http ： /public/brand/60.html

或联系我们的销售工程师： 0755- 83642657 QQ ： 2295048674

数据表	军用零件号	逻辑类型	电源电压	频率范围
MIL-PRF-55310/08	M55310/08J w/ AMENDMENT 1	TTL	5Vdc	50Hz to 50MHz
MIL-PRF-55310/09	M55310/09J w/ AMENDMENT 1	TTL	5Vdc	400kHz to 60MHz
MIL-PRF-55310/10	M55310/10J w/ AMENDMENT 1	TTL	5Vdc	1kHz to 60MHz
MIL-PRF-55310/11	M55310/11G w/ AMENDMENT 1	CMOS	10 to 15Vdc	.05MHz to 10MHz
MIL-PRF-55310/12	M55310/12H w/ AMENDMENT 1	CMOS	10 to 15Vdc	.05MHz to 10MHz
MIL-PRF-55310/13	M55310/13J	CMOS	10 to 15Vdc	300Hz to 10MHz
MIL-PRF-55310/14	M55310/14H w/ AMENDMENT 1	TTL	5Vdc	.1Hz to 25MHz
MIL-PRF-55310/15	M55310/15G w/ AMENDMENT 1	CMOS	6.75 to15Vdc	.01Hz to 10MHz
MIL-PRF-55310/16	M55310/16K	TTL	5Vdc	375kHz to 80MHz
MIL-PRF-55310/16	M55310/16K	TTL	5Vdc	.1Hz to 80MHz
MIL-PRF-55310/17	M55310/17F w/ AMENDMENT 1	TTL	5Vdc	250kHz to 50MHz
MIL-PRF-55310/18	M55310/18F w/ AMENDMENT 1	CMOS	5 to 15Vdc	.01Hz to 15MHz
MIL-PRF-55310/19	M55310/19E w/ AMENDMENT 1	TTL	5Vdc	1MHz to 60MHz
MIL-PRF-55310/20	M55310/20F	TTL	5Vdc	40kHz to 60MHz
MIL-PRF-55310/21	M55310/21H	TTL	5Vdc	1MHz to 60MHz
MIL-PRF-55310/26	M55310/26D w/ AMENDMENT 1	HCMOS	5Vdc	.01MHz to 65MHz
MIL-PRF-55310/26	M55310/26D w/ AMENDMENT 1	HCMOS	5Vdc	375kHz to 65MHz
MIL-PRF-55310/26	M55310/26D w/ AMENDMENT 1	HCMOS	5Vdc	.01MHz to 65MHz
MIL-PRF-55310/26	M55310/26D w/ AMENDMENT 1	HCMOS	5Vdc	375kHz to 65MHz
MIL-PRF-55310/27	M55310/27E	HCMOS	5Vdc	1MHz to 85MHz
MIL-PRF-55310/28	M55310/28D	TTL	5Vdc	1MHz to 85MHz
MIL-PRF-55310/29	M55310/29C	HCMOS (Tristate)	5Vdc	.2MHz to 85MHz
MIL-PRF-55310/30	M55310/30E	CMOS	3.3Vdc	450kHz to 100MHz
MIL-PRF-55310/33	M55310/33D	CMOS	5Vdc	500kHz to 85MHz
MIL-PRF-55310/34	M55310/34D	CMOS	3.3Vdc	500kHz to 150MHz
MIL-PRF-55310/35	M55310/35C	CMOS	2.5Vdc	1MHz to 133MHz
MIL-PRF-55310/36	M55310/36C	CMOS	1.8Vdc	1MHz to 100MHz
MIL-PRF-55310/37	M55310/37C	CMOS	5Vdc	500kHz to 85MHz
MIL-PRF-55310/38	M55310/38C	CMOS	3.3Vdc	500kHz to 150MHz
MIL-PRF-55310/39	M55310/39C	CMOS	2.5Vdc	1MHz to 133MHz
MIL-PRF-55310/40	M55310/40C	CMOS	1.8Vdc	1MHz to 100MHz
